1.10.071.001/0661 | RAFI

Signal light, 28 V, blue, Mounting Ø 22.3 mm, LED number: 1, 1.10.071.001/0661

Order No.: 12G9905
EAN: 4099889578850
MPN:
1.10.071.001/0661
Series: RAMO 22

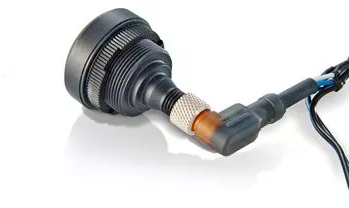

1.10.071.001/0661 RAFI Signal Lamps, Indicators, Arrays Image 1
1.10.071.001/0661 RAFI Signal Lamps, Indicators, Arrays Image 2
Image may differ
Unit Price (€ / pc.)
32.9392 € *
Available: 6 pcs.
Total Price:
32.94 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
32.9392 €

LED signal lamp, 1.10.071.001/0661, RAFI

The RAMO I signal lamp extendes with a bright and energy-efficient signal lamp. Due to the concave aperture, the beam and viewing angle is more than 180° and therefore optically different from the RAMO T pushbutton. This connection is easily made via Plug & Play without manual wiring - with M12 sensor cable.

Applications

  • Measurement-control-regulation
  • Electrical engineering
  • Mechanical and system engineering
  • Vehicle construction
  • Chemical industry
  • Industrial robots
Technical specifications
Filter Property Value
Number of LEDs 1
Rated voltage 28 V
Rated current 20 mA
Connection M12 plug, 4 pole (A coded)
Installation diameter 22.3 mm
Diode Diameter 22 mm
Farbe der Beleuchtung blue
Assembly screw mounting
Logistics
Property Value
Country of origin DE
Customs tariff number 85414100
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
