1.02.157.105/1300 | RAFI

Signal light, 28 V, red, 200 mcd, Mounting Ø 9.1 mm, LED number: 1, 1.02.157.105/1300

Order No.: 31G330
EAN: 4099889579154
MPN:
1.02.157.105/1300
Series: SIGNALLEUCHTEN
1.02.157.105/1300 RAFI Signal Lamps, Indicators, Arrays
Image may differ
Unit Price (€ / pc.)
12.3046 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
12.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.3046 €

Signal lamps with ultra-bright LED, type RAFI 1.02.157.

Panel mount diameter 9.1 mm. With built-in current-limiting resistor; Lens: grooved inside, translucent. Operating Voltage: 24 to 28 V. On-state voltage (at 20 mA): 2.4 V. Reverse Voltage (at +25 °C): 3.0 V. Reverse current (at +25 °C): 100 µA. Power loss (at +25 °C): max. 120 mW. Connection: soldered. Mounting: threaded ring. Degree of protection (front side): IP 40.

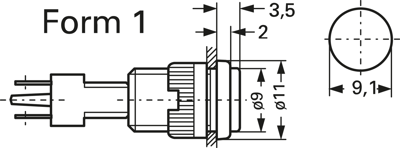

Design 1 with round flat lens.

Technical attributes (type, diode and lens color, luminous intensity (at 20 mA)): 1.02.157.105/1300, red, 200 mcd

Technical specifications
Filter Property Value
Connection solder connection
Farbe der Beleuchtung red
Number of LEDs 1
Luminous intensity 0.2 cd
Rated voltage 28 V
Assembly screw mounting
Diode Diameter 9 mm
Rated current 20 mA
Installation diameter 9.1 mm
Logistics
Property Value
Country of origin HU
Customs tariff number 85414100
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
