1.15.108.351/0000 | RAFI

Pushbutton switch, 2 pole, transparent, illuminated , 4 A/230 V, mounting Ø 16.2 mm, IP40, 1.15.108.351/0000

Order No.: 12G6210
EAN: 4099889193435
MPN:
1.15.108.351/0000
Series: LUMOTAST 75

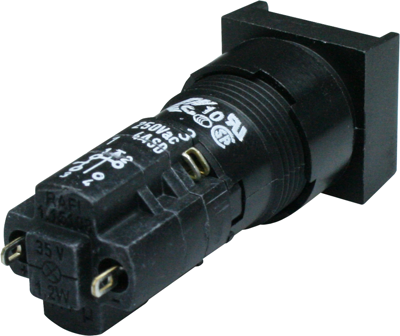

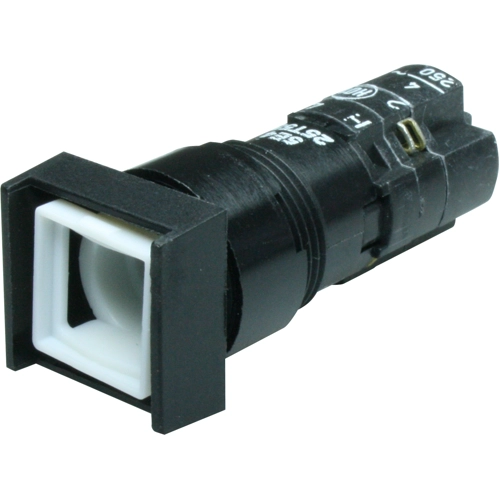

1.15.108.351/0000 RAFI Pushbutton Switches Image 1
1.15.108.351/0000 RAFI Pushbutton Switches Image 2
1.15.108.351/0000 RAFI Pushbutton Switches Image 3
Image may differ
Unit Price (€ / pc.)
29.1074 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
29.11 € *
Price list
Quantity
Price per unit*
1 pcs.
29.1074 €
5 pcs.
27.3581 €
15 pcs.
26.3109 €
50 pcs.
25.1447 €
150 pcs.
24.0975 €
*incl. VAT plus shipping costs
Subject to prior sale

Illuminated pushbuttons and switches with solder terminals, series LUMOTAST 75, type RAFI 1.15.108.

Momentary or latching contact function; Panel-mount diameter: 16.2 mm. With threaded ring fastener. Rated voltage/rated current: 12 to 220 VDC/0.2 A, 12 to 250 VAC/4.0 A. Connection type: tinned solder terminals. Lamp socket: T 4.5, for miniature telecommunication lamps or LED with T 4.5 socket. Lamps, LEDs and indicator lamps that match LUMOTAST are described in the same chapter at the lamps and sockets. Bezel color: black. Actuating force: 3.0 N to 6.5 N. Actuating travel: 2.7 mm. Contacts: snap-action bridge, silver. Operating temperatures with/without glow lamp or LED: –25 to +55/+70 °C. Degree of protection: IP 40 at the switchboard front. Certifications: UL, CSA. The button caps and keycaps are available on separate order.

Design 2 with 18 x 18 mm square collar and submerged lens (flush at the top and bottom).

Technical attributes (type, type of contact (NC, NO), contact function): 1.15.108.351/0000, 1 NC + 1 NO, latching

Technical specifications
Filter Property Value
Breaking capacity 4 A/230 V
Protection class IP40
Installation diameter 16.2 mm
contact surface silver-plated
Pin number 2 pole
illuminated Yes
Latching switching function latching
Design square
Printed No
Connection solder connection
Actuator colour transparent
Logistics
Property Value
Country of origin HU
Customs tariff number 85365080
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
