1.10.107.011/0301 | RAFI

Pushbutton, 1 pole, red, unlit , 0.1 A/24 V, mounting Ø 9.1 mm, IP40, 1.10.107.011/0301

Order No.: 12G302
EAN: 4099889190632
MPN:
1.10.107.011/0301

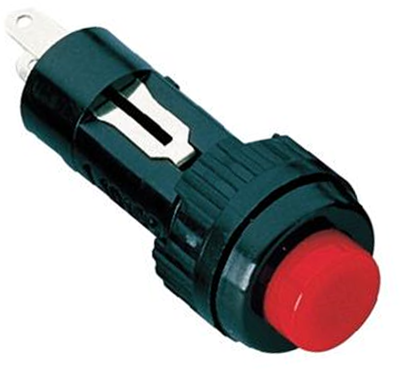

1.10.107.011/0301 RAFI Pushbutton Switches Image 1
1.10.107.011/0301 RAFI Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
5.1289 € *
Available: 53 pcs.
Leadtime: 7 Weeks **
Total Price:
5.13 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1289 €
10 pcs.
4.5220 €
100 pcs.
3.9508 €
250 pcs.
3.8080 €
1000 pcs.
3.5700 €
*incl. VAT plus shipping costs
**Subject to prior sale

Pushbutton switches, not illuminated, type RAFI 1.10.107.011.

Panel-mount diameter: 9.1 mm, black round collar and projecting lens, opaque. Contact type: 1 x NO. Mounting: threaded ring. Connections: solder terminals. Contact material: silver. Actuating force: max. 7.0 N/m. Actuating travel: 2.0 mm. Switching voltage: max. 24 V. Switching current: max. 0.1 A. Degree of protection (at the front): IP 40. Operating temperatures: –25 to +70 °C.

Technical attributes (type, lens color): 1.10.107.011/0301, red

Technical specifications
Printed No
Installation diameter 9.1 mm
contact surface silver-plated
Breaking capacity 0.1 A/24 V
Actuator colour red
Pin number 1 pole
Design round
illuminated No
Connection solder connection
Protection class IP40
Latching switching function groping
Logistics
Country of origin HU
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
