1.10.001.001/0507 | RAFI
Pushbutton, 1 pole, green, unlit , 0.7 A/250 V, mounting Ø 15.2 mm, IP40/IP65, 1.10.001.001/0507
Unit Price (€ / pc.)
5.8310 € *
Available: 213 pcs.
Next delivery: 100 pcs. on 2026-01-28
Total Price:
5.83 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8310 €
10 pcs.
5.1289 €
100 pcs.
4.4982 €
250 pcs.
4.3197 €
1000 pcs.
4.0341 €
*incl. VAT plus shipping costs
Subject to prior sale

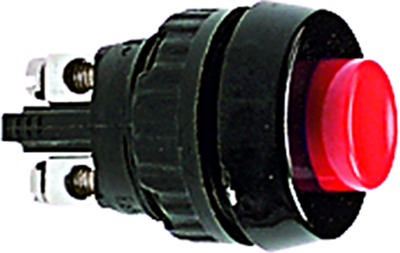

Pushbutton switches, not illuminated, type RAFI 1.10.001.

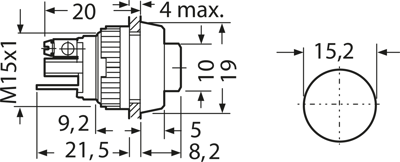

Panel-mount diameter: 15.2 mm, black round collar and projecting lens, opaque. Mounting: threaded ring. Contact material: silver. Actuating force: max. 7.5 N/m. Actuating travel: 3.0 mm. Switching voltage: max. 250 VAC. Switching current: max. 0.7 A. Degree of protection (at the front): IP 40 (IP 65 with sealing cap). Operating temperatures: –25 to +85 °C. ENEC.
1 x NO contact and screw terminals, type 1.10.001.001/.
Technical attributes (type, lens color): 1.10.001.001/0507, green
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Actuator colour | green | |
| Breaking capacity | 0.7 A/250 V | |
| illuminated | No | |
| Printed | No | |
| Connection | screw connection | |
| Design | round | |
| contact surface | silver-plated | |
| Installation diameter | 15.2 mm | |
| Protection class | IP40/IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
