1.01.102.011/0507 | RAFI

Pushbutton, 2 pole, green, unlit , 2 A/250 V, mounting Ø 18.2 mm, IP40/IP65, 1.01.102.011/0507

Order No.: 12G473
EAN: 4099889192704
MPN:
1.01.102.011/0507

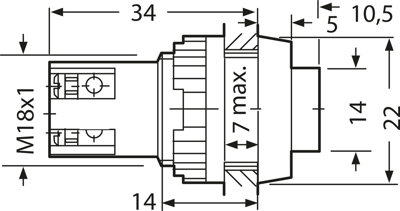

1.01.102.011/0507 RAFI Pushbutton Switches Image 1

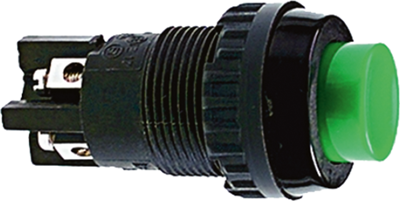

1.01.102.011/0507 RAFI Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
14.7560 € *
Available: 79 pcs.
Total Price:
14.76 € *
Price list
Quantity
Price per unit*
1 pcs.
14.7560 €
10 pcs.
13.2685 €
50 pcs.
12.5426 €
100 pcs.
11.8048 €
500 pcs.
11.0670 €
*incl. VAT plus shipping costs
Subject to prior sale

Pushbutton switch, not illuminated, type RAFI 1.01.102.

Panel-mount diameter: 18.2 mm, black collar and projecting lens, opaque. Mounting: threaded ring. Connections: screw terminals. Contact material: silver. Actuating force: max. 9.5 N/m. Actuating travel: 5.0 mm. Switching voltage: max. 250 VAC. Switching current: max. 2.0 A. Degree of protection (at the front): IP 40 (IP 65 with sealing cap). Operating temperatures: –25 to +85 °C.

1 x NO + 1 x NC, type 1.01.102.011/.

Technical attributes (type, lens color): 1.01.102.011/0507, green

Technical specifications
Filter Property Value
Breaking capacity 2 A/250 V
Protection class IP40/IP65
illuminated No
Actuator colour green
Installation diameter 18.2 mm
Pin number 2 pole
contact surface silver-plated
Connection screw connection
Latching switching function groping
Design round
Printed No
Logistics
Property Value
Customs tariff number 85365080
Country of origin HU
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
