1.01.102.011/0301 | RAFI
Pushbutton, 2 pole, red, unlit , 2 A/250 V, mounting Ø 18.2 mm, IP40/IP65, 1.01.102.011/0301
Unit Price (€ / pc.)
14.7560 € *
Available: 9 pcs.
Total Price:
14.76 € *
Price list
Quantity
Price per unit*
1 pcs.
14.7560 €
10 pcs.
13.2685 €
50 pcs.
12.5426 €
100 pcs.
11.8048 €
500 pcs.
11.0670 €
*incl. VAT plus shipping costs
Subject to prior sale

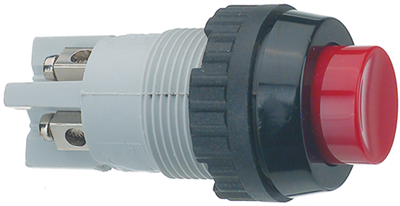

Pushbutton switch, not illuminated, type RAFI 1.01.102.

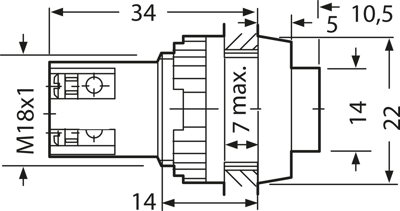

Panel-mount diameter: 18.2 mm, black collar and projecting lens, opaque. Mounting: threaded ring. Connections: screw terminals. Contact material: silver. Actuating force: max. 9.5 N/m. Actuating travel: 5.0 mm. Switching voltage: max. 250 VAC. Switching current: max. 2.0 A. Degree of protection (at the front): IP 40 (IP 65 with sealing cap). Operating temperatures: –25 to +85 °C.
1 x NO + 1 x NC, type 1.01.102.011/.
Technical attributes (type, lens color): 1.01.102.011/0301, red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 2 A/250 V | |
| Printed | No | |
| Latching switching function | groping | |
| illuminated | No | |
| Protection class | IP40/IP65 | |
| Actuator colour | red | |
| Pin number | 2 pole | |
| contact surface | silver-plated | |
| Installation diameter | 18.2 mm | |
| Connection | screw connection | |
| Design | round |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
