1.60.502.091/0000 | RAFI
Frame part without orifice plate, E10, 250 V, screw connection, 1.60.502.091/0000
Unit Price (€ / pc.)
4.1174 € *
Available: 290 pcs.
Leadtime: On Request **
Total Price:
4.12 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1174 €
10 pcs.
3.6295 €
100 pcs.
3.1773 €
250 pcs.
3.0464 €
1000 pcs.
2.8679 €
*incl. VAT plus shipping costs
**Subject to prior sale
Signal lamps with E 10 socket, type RAFI 1.60.502.

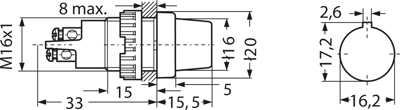

Panel mount diameter: 16.2 mm, round bezel. Illumination: filament lamp with E 10 socket (available on separate order). Mounting: threaded ring. Connections: screw terminals. Degree of protection (at the front): IP 40. Limits: max. 250 V/2.0 W. Certifications: VDE. Lenses are available on separate order.
Type: 1.60.502.091/0000, socket element without lens
Technical specifications
| Connection | screw connection | |
| Version | socket element | |
| Type of mounting | threaded ring | |
| Socket version | E10 | |
| Voltage | 250 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85319000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
