1.15.108.941/0000 | RAFI

Key switch, unbeleuchtet, 16.2 mm, -25 °C, 1.15.108.941/0000

Order No.: 12G6100
EAN: 4099889200966
MPN:
1.15.108.941/0000
Series: LUMOTAST 75

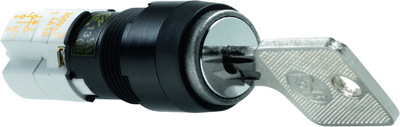

1.15.108.941/0000 RAFI Key Switches Image 1
1.15.108.941/0000 RAFI Key Switches Image 2
Image may differ
Unit Price (€ / pc.)
44.5893 € *
Available: 8 pcs.
Total Price:
44.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
44.5893 €

Keylock switches with solder terminals, series LUMOTAST 75, type RAFI 1.15.108.

Momentary or latching contact function; Panel mount diameter: 16.2 mm. Threaded ring fastener. Rated voltage/rated current: 12 to 220 VDC/0.02 A, 12 to 250 VDC/4.0 A. Connection type: solder terminals, tinned. Bezel color: black. Contacts: snap-action bridge contact, silver. Operating temperatures: –25 to +70 °C. Degree of protection: IP 40 at the switchboard front. Lock: rotary cylinder lock with 4 interlocks (supplied with 2 keys). Key code: 1 D 21. Angle of rotation: momentary switch 45°/switch 90°. Certifications: UL, CSA.

Design 1 with round collar, diameter 18 mm, and protruding lock collar.

Technical attributes (type, contact type (NC, NO), Key removal position (): 1.15.108.941/0000, 1 NC + 1 NO, A, momentary

Technical specifications
Filter Property Value
Version groping
Latching switching function On-Off/Off-On
Pin number 2 pole
Rotation angle 45°
Trigger position key 0
Connection solder connection
contact surface silver-plated
Installation diameter 16.2 mm
Breaking capacity 4 A/250 VAC, 0.02 A/220 VDC
Degree of protection (IP) IP40
Logistics
Property Value
Customs tariff number 85365080
Country of origin HU
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
