1.15.105.022/0000 | RAFI

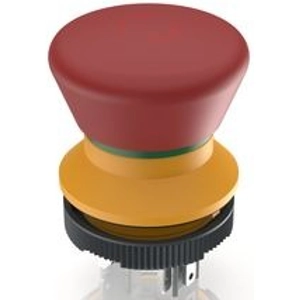

Emergency stop, rotary release, mounting Ø 22.3 mm, unlit, 24 V, 2 Form B (N/C) + 1 Form A (N/O), 1.15.105.022/0000
Unit Price (€ / pc.)
50.9082 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
50.91 € *
Price list
Quantity
Price per unit*
1 pcs.
50.9082 €
10 pcs.
48.7067 €
20 pcs.
45.0415 €
*incl. VAT plus shipping costs
Subject to prior sale
Emergency stop, 1.15.105.022/0000, Rafi
Lumotast 22, emergency stop button, 2 NC + 1 NO, silver, reset by rotating. The compact LUMOTAST 22 emergency stop with quick-connect terminals is ideal wherever an emergency stop or emergency off is required and space is tight in front of or behind the front panel. This emergency stop is also available with a PCB terminal.
Features
- Night design, illumination of the arrows possible
- Water jet protection class IP 65 on front
- Low mounting depth
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resetting | rotary release | |
| Contact function | latching | |
| illuminated | No | |
| Type of labeling | red | |
| Collar shape of the front frame | round | |
| Type of mounting | threaded ring | |
| Installation diameter | 22.3 mm | |
| Height | 25.9 mm | |
| Degree of protection (IP) | IP65 | |
| Latching switching function | 2 Form B (N/C) + 1 Form A (N/O) | |
| Rated voltage | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
