1.74.505.501/1500 | RAFI

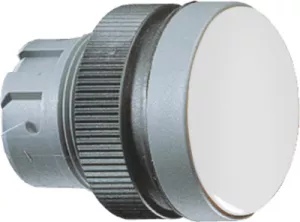

Light attachment, illuminable, waistband round, green, front ring silver, mounting Ø 22.3 mm, 1.74.505.501/1500

Order No.: 12G7906
EAN: 4099889249576
MPN:
1.74.505.501/1500
Series: RAFIX 22 QR
1.74.505.501/1500 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
5.5454 € *
Available: 17 pcs.
Total Price:
5.55 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5454 €
10 pcs.
4.8909 €
100 pcs.
4.2840 €
250 pcs.
4.1174 €
1000 pcs.
3.8556 €
*incl. VAT plus shipping costs
Subject to prior sale

Lamp attachments with round collar, for lamp sockets series RAFIX 22QR

type: 1.74.505.501/1300

With translucent lens.

Lens Color green

suitable for panel-mount diameter of 22.3 mm to IEC 60947. Suitable for the lamp sockets.You can combine these as required by snapping them together. Degree of protection at the switchboard front: IP 65. Operating temperatures: - 25 to +70 °C. Mounting position: any. Screw terminals. Safety class: II. Contact system: self-cleaning bridge contact. Actuating force: 5.0 N per element. Operating current with silver-plated contacts: 250 V/6.0 A (125 V/10 A, 400 V/13.5 A). Operating current with gold-plated contacts: 1.0 to 35 V AC/DC/0.01 to 100 mA UC. Rated insulation voltage: 400 VAC. Rated surge voltage: 6.0 kV.

Technical specifications
Filter Property Value
Collar shape of the front frame round
Type of mounting threaded ring
Product type light attachment
Actuator colour green
Front ring colour silver

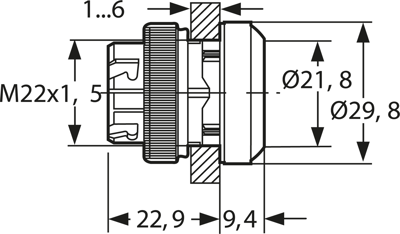

Installation diameter 22.3 mm
can be illuminated Yes
Installation height 9.4 mm
Installation depth 56.4 mm
Protection class IP65
Logistics
Property Value
Customs tariff number 85389099
Country of origin HU
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
