1.74.505.501/1300 | RAFI

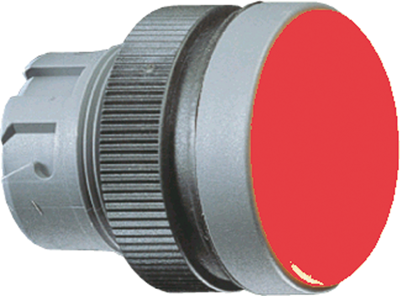

Light attachment, illuminable, waistband round, red, front ring silver, mounting Ø 22.3 mm, 1.74.505.501/1300
Unit Price (€ / pc.)
4.2007 € *
Available: 12 pcs.
Lamp attachments with round collar, for lamp sockets series RAFIX 22QR
type: 1.74.505.501/1300
With translucent lens.
Lens Color red.
suitable for panel-mount diameter of 22.3 mm to IEC 60947. Suitable for the lamp sockets.You can combine these as required by snapping them together. Degree of protection at the switchboard front: IP 65. Operating temperatures: - 25 to +70 °C. Mounting position: any. Screw terminals. Safety class: II. Contact system: self-cleaning bridge contact. Actuating force: 5.0 N per element. Operating current with silver-plated contacts: 250 V/6.0 A (125 V/10 A, 400 V/13.5 A). Operating current with gold-plated contacts: 1.0 to 35 V AC/DC/0.01 to 100 mA UC. Rated insulation voltage: 400 VAC. Rated surge voltage: 6.0 kV.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 22.3 mm | |
| Type of mounting | threaded ring | |
| Installation height | 9.4 mm | |
| Front ring colour | silver | |
| Protection class | IP65 | |
| Installation depth | 56.4 mm | |
| Actuator colour | red | |
| Product type | light attachment | |
| can be illuminated | Yes | |
| Collar shape of the front frame | round |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
