1.30.292.027/2200 | RAFI

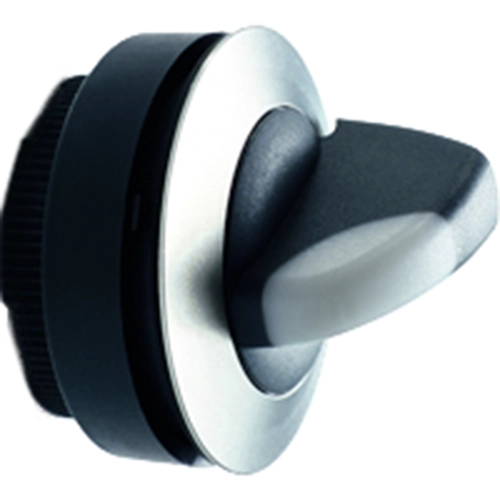

Toggle switch, illuminable, groping, waistband round, white, front ring silver, 2 x 40°, mounting Ø 30.3 mm, 1.30.292.027/2200

Order No.: 12G9773
EAN: 4099889252446
MPN:
1.30.292.027/2200
Series: RAFIX 30 FS+
1.30.292.027/2200 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
21.2891 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
21.29 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
21.2891 €

Befehlsgeräte Serie RAFIX 30 FS+ 1.30.

Extra flache Blenden, genießt alle Vorzüge der Befehlsgerätebaureihe 22FS+; Befestigung: mit Gewindering + Adapter, Einbauöffnung: 30,5 mm, Schutzart frontseitig: IP 65, Betriebstemperatur: –25 bis +70 °C, Anschluss: Printanschluss mit Verdrehschutz, Öffner-Kontakte: zwangstrennend nach IEC 947-5-1, geeignet für die aufgeführten Betätigungstasten, Schaltelemente und Lampenfassungen der Reihe FS, die frei kombinierbar sind, minimales Rastermaß von 35 x 35 mm, Goldkontakte ab 5,0 V, Silberkontake bis 250 V, mit Kurzhub-Betätigung (Schaltweg 0,5 mm), variabel in der Beleuchtung, kompatibel mit 3,0 mm THT-LEDs/SMT-LEDs oder LED-Clip.

Beleuchtbare Wahlschalter mit markierten Griffknebel mit schwarzem Frontring Serie RAFIX 30 FS+ Typ 1.30.292.

Runder Bund; Knebel: kurz oder lang, Knebelmarkierung: weiß, transluzent, beleuchtbar, platzsparender Aufbau, mit schwarzem Frontring. Tabellenangaben: Typ, Kontaktfunktion, Drehwinkel.

Type: 1.30.292.027/2200, tastend, 2 x 40°

Technical specifications
Installation height 17.43 mm
Contact function groping
Installation diameter 30.3 mm
Type of mounting threaded ring
Front ring colour silver
Actuator colour white
Product type toggle switch
Protection class IP65
Installation depth 15.7 mm
Rotation angle 2 x 40°
Collar shape of the front frame round
can be illuminated Yes
Logistics
Country of origin HU
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
