1.30.290.121/0000 | RAFI

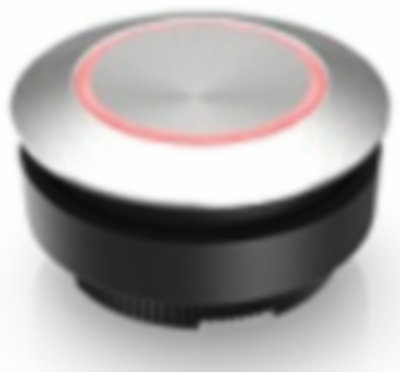

Pushbutton, illuminable, groping, waistband round, silver, front ring silver, mounting Ø 30.3 mm, 1.30.290.121/0000
Unit Price (€ / pc.)
18.0285 € *
Available: 4 pcs.
Pushbutton, 1.30.290.121/0000, RAFI
The pushbutton can be used in combination with the switching elements from the RAFIX 22 FS+ series PCB print connection, QC plug-in connection or via the short-stroke adapter for MICON 5. Between the front ring and the stainless steel insert is a translucent plastic ring, which can be illuminated in color if required.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| can be illuminated | Yes | |
| Contact function | groping | |
| Installation diameter | 30.3 mm | |
| Type of mounting | threaded ring + adapter | |
| Protection class | IP65 | |
| Installation depth | 15.7 mm | |
| Installation height | 3.45 mm | |
| Front ring colour | silver | |
| Product type | pushbutton | |
| Collar shape of the front frame | round | |
| Actuator colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
