1.30.275.501/0100 | RAFI

Key switch, unlit, latching/groping, waistband round, black, front ring black, 1 x 90°/1 x 40°, trigger position 0, mounting Ø 22.3 mm, 1.30.275.501/0100

Order No.: 12G9740
EAN: 4099889252118
MPN:
1.30.275.501/0100
Series: RAFIX 22 FS+
1.30.275.501/0100 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
34.8908 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
34.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
34.8908 €

Keylock switch with plastic front ring, compact, series RAFIX 22FS+

Type: 1.30.275.501/0100

Collar: round

Color of front ring: black

Collar and housing: black

Dimension of collar: 29.8 mm

Overall height: 44.1 mm

Mounting hole: 22.3 mm

Mounting: ring nut

Master and Group key: no

Master and changeover key: no

Locking position: 001

Interlocks: 5

Number of locks: 500

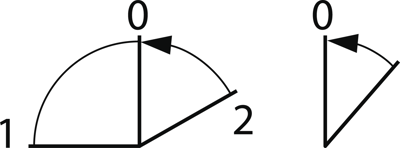

Funktion: latching 1 x 90° and momentary action 1 x 40°

Key removal Position: 0

Included: 2 keys

Technical specifications
Filter Property Value
Collar shape of the front frame round
Trigger position key 0
Protection class IP65
Contact function latching/groping
Front ring colour black
can be illuminated No
Installation depth 9.2 mm
Installation diameter 22.3 mm
Type of mounting threaded ring
Actuator colour black
Product type key switch
Installation height 44.1 mm
Rotation angle 1 x 90°/1 x 40°
Logistics
Property Value
Customs tariff number 85365080
Country of origin HU
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
