1.30.272.027/2200 | RAFI

Toggle switch, illuminable, groping, waistband round, white, front ring silver, 2 x 40°, mounting Ø 22.3 mm, 1.30.272.027/2200

Order No.: 12G9272
EAN: 4099889250626
MPN:
1.30.272.027/2200
Series: RAFIX 22 FS+
1.30.272.027/2200 RAFI Actuators, Signal Elements and Front Elements

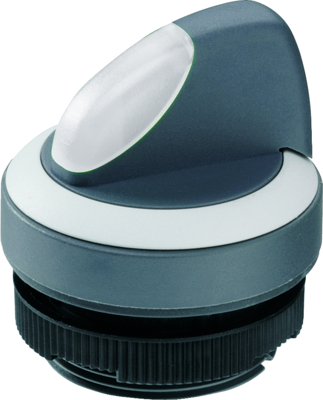

Image may differ
Unit Price (€ / pc.)
14.2443 € *
Next delivery: 10 pcs. on 2025-10-10
Total Price:
14.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
14.2443 €

Mode switch with marked lever and metalized bezel, series RAFIX 22FS+

type: 1.30.272.027/2200

Collar: round. Toggle lever marking: white, translucent for illuminated Version. Front bezel: metal colored. Function: momentary action, 2 x 40°.

Mounting depth: 9.2 mm. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: - 25 to +70 °C.

Technical specifications
Filter Property Value
Installation diameter 22.3 mm
Type of mounting threaded ring
Installation height 22.24 mm
Connection PCB connection
Front ring colour silver
Protection class IP65
Installation depth 9.2 mm
Contact function groping
Actuator colour white
Product type toggle switch
can be illuminated Yes
Collar shape of the front frame round
Rotation angle 2 x 40°
Logistics
Property Value
Country of origin HU
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
