1.30.272.001/2208 | RAFI

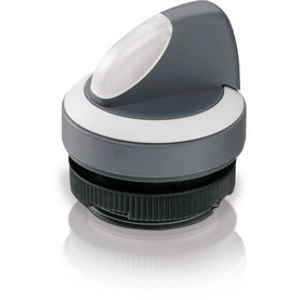

Toggle switch, illuminable, groping, waistband round, white/black, front ring silver gray, 1 x 40°, mounting Ø 22.3 mm, 1.30.272.001/2208
Unit Price (€ / pc.)
14.1729 € *
Standard delivery time from the manufacturer is: 9 Weeks
Selector switch, 1.30.272.001/2208, RAFI
RAFIX control devices are defined at RAFI as modular elements, consisting of an actuating element, if necessary a coupling and an individual contact or lighting unit. Actuating elements (such as pushbuttons, emergency stop actuators, etc.) have the intended tactility, reset and function only when assembled with the appropriate switching elements.
Features
- Lighting of the rotary handle marking with SMT-LED
- Colored illumination with colored LEDs possible
- Low mounting depth 9.2 mm (PCB) or 27 mm (QC)
- Connection types: PCB connection (PCB) or plug-in connection (QC)
- The PCB switching elements minimize assembly errors
- Switching elements with silver contacts (max. 250 V/4 A) or gold contacts (max. 35 V/100 mA)
- Design adaptation by different front ring variations
- Degree of protection: IP 65 front
Applications
- Measurement-control-regulation
- Electrical engineering
- Mechanical and system engineering
- Vehicle construction
- Handheld terminals
- Industrial robots
Technical specifications
| Filter | Property | Value |
|---|---|---|
| can be illuminated | Yes | |
| Contact function | groping | |
| Installation diameter | 22.3 mm | |
| Rotation angle | 1 x 40° | |
| Type of mounting | threaded ring | |
| Protection class | IP65 | |
| Installation depth | 9.2 mm | |
| Installation height | 22.24 mm | |
| Front ring colour | silver gray | |
| Product type | toggle switch | |
| Collar shape of the front frame | round | |
| Actuator colour | white/black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
