1.30.270.971/2200 | RAFI

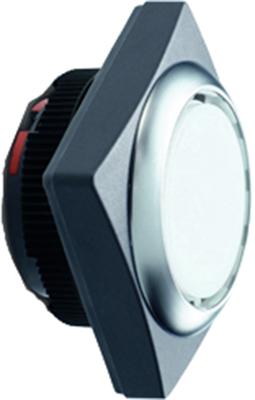

Pushbutton, illuminable, groping, waistband square, white, front ring silver, mounting Ø 22.3 mm, 1.30.270.971/2200
Unit Price (€ / pc.)
7.1400 € *
Standard delivery time from the manufacturer is: 9 Weeks
Pushbutton series RAFIX 22FS+ FLEXLAB
Type: 1.30.270.971/2200
Version: illuminated
Front ring color: silver metallic
Function: momentary
Collar: square
Actuator flush with bezel, direct action to the contact block. Metal front ring. Individual labeling using the optionally offered DIN A 4 labeling sheets. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: - 25 to +70 °C. Pushbutton travel: 4.0 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation depth | 9.2 mm | |
| Actuator colour | white | |
| Protection class | IP65 | |
| Type of mounting | threaded ring | |
| Installation height | 9.85 mm | |
| Collar shape of the front frame | square | |
| Front ring colour | silver | |
| Contact function | groping | |
| Product type | pushbutton | |
| can be illuminated | Yes | |
| Installation diameter | 22.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
