1.30.270.961/2206 | RAFI

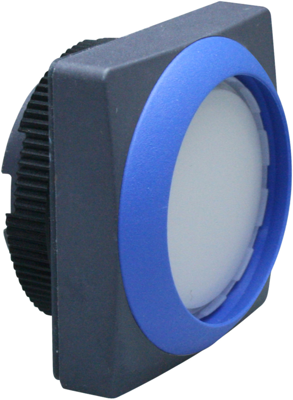

Pushbutton switch, illuminable, latching, waistband square, white, front ring blue, mounting Ø 22.3 mm, 1.30.270.961/2206

Order No.: 12G9725
EAN: 4099889251975
MPN:
1.30.270.961/2206
Series: RAFIX 22 FS+
1.30.270.961/2206 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
12.8639 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
12.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.8639 €

Pushbutton series RAFIX 22FS+ FLEXLAB

Type: 1.30.270.961/2206

Version: illuminated

Front ring color: blue

Function: latching

Collar: square

Actuator flush with bezel, direct action to the contact block. Plastic front ring. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: - 25 to +70 °C. Pushbutton travel: 4.0 mm.

Technical specifications
Filter Property Value
Protection class IP65
Installation depth 9.2 mm
Contact function latching
Installation height 9.85 mm
Installation diameter 22.3 mm
Type of mounting threaded ring
Collar shape of the front frame square
Actuator colour white
Front ring colour blue
can be illuminated Yes
Product type pushbutton switch
Logistics
Property Value
Customs tariff number 85365080
Country of origin HU
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
