1.30.270.961/2204 | RAFI

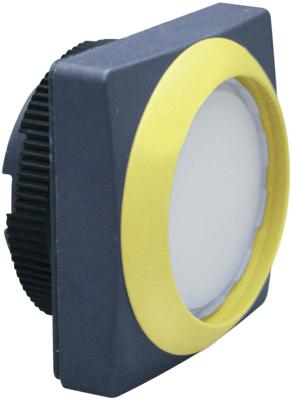

Pushbutton switch, illuminable, latching, waistband square, white, front ring yellow, mounting Ø 22.3 mm, 1.30.270.961/2204

Order No.: 12G9723
EAN: 4099889251951
MPN:
1.30.270.961/2204
Series: RAFIX 22 FS+
1.30.270.961/2204 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
12.8639 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
12.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.8639 €

Pushbutton series RAFIX 22FS+ FLEXLAB

Type: 1.30.270.961/2204

Version: illuminated

Front ring color: yellow

Function: latching

Collar: square

Actuator flush with bezel, direct action to the contact block. Plastic front ring. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: - 25 to +70 °C. Pushbutton travel: 4.0 mm.

Technical specifications
Installation height 9.85 mm
Contact function latching
Installation diameter 22.3 mm
Type of mounting threaded ring
Front ring colour yellow
Actuator colour white
Product type pushbutton switch
Protection class IP65
Installation depth 9.2 mm
Collar shape of the front frame square
can be illuminated Yes
Logistics
Country of origin HU
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
