1.30.270.951/2206 | RAFI

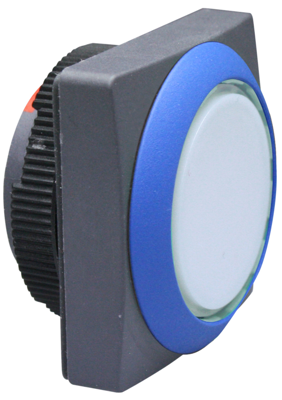

Pushbutton, illuminable, groping, waistband square, white, front ring blue, mounting Ø 22.3 mm, 1.30.270.951/2206

Order No.: 12G9711
EAN: 4099889251838
MPN:
1.30.270.951/2206
Series: RAFIX 22 FS+
1.30.270.951/2206 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
6.4141 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
6.41 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.4141 €

Pushbutton series RAFIX 22FS+ FLEXLAB

Type: 1.30.270.951/2206

Version: illuminated

Front ring color: blue

Function: momentary

Collar: square

Actuator flush with bezel, direct action to the contact block. Plastic front ring. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: - 25 to +70 °C. Pushbutton travel: 4.0 mm.

Technical specifications
Installation height 9.85 mm
Contact function groping
Installation diameter 22.3 mm
Type of mounting threaded ring
Front ring colour blue
Actuator colour white
Product type pushbutton
Protection class IP65
Installation depth 9.2 mm
Collar shape of the front frame square
can be illuminated Yes
Logistics
Country of origin HU
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
