1.30.270.901/2206 | RAFI

Pushbutton, illuminable, groping, waistband round, white, front ring blue, mounting Ø 22.3 mm, 1.30.270.901/2206

Order No.: 12G9704
EAN: 4099889251760
MPN:
1.30.270.901/2206
Series: RAFIX 22 FS+
1.30.270.901/2206 RAFI Actuators, Signal Elements and Front Elements

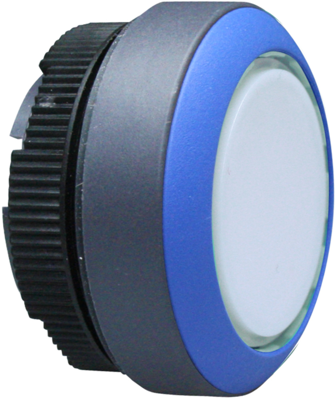

Image may differ
Unit Price (€ / pc.)
6.4141 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
6.41 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.4141 €

Ultra-flat control elements, series RAFIX 22FS+, type RAFI 1.20.

Mounting depth: 9.2 mm. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: –25 to +70 °C. PCB connection with anti-twist mechanism. Pushbutton travel: 4.0 mm. End stop strength: 100 N. NC contacts: force released to IEC 947-5-1. Switching element: gold contacts. Illumination: 3.0 mm LED.

Pushbutton, illuminated, plastic front ring, series RAFIX 22FS+ FLEXILAB.

Momentary action contacts, round collar.

Technical attributes (type, front ring color): 1.30.270.901/2206, blue

Technical specifications
Installation height 9.85 mm
Contact function groping
Installation diameter 22.3 mm
Type of mounting threaded ring
Front ring colour blue
Actuator colour white
Product type pushbutton
Protection class IP65
Installation depth 9.2 mm
Collar shape of the front frame round
can be illuminated Yes
Logistics
Country of origin HU
Customs tariff number 85365080
Original Packaging Carton with 10 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
