1.30.270.901/2205 | RAFI

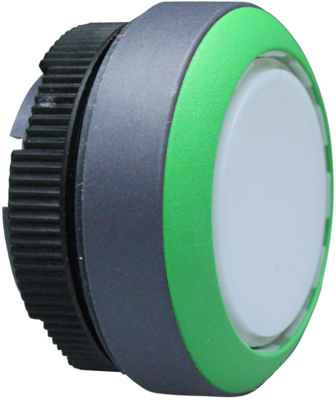

Pushbutton, illuminable, groping, waistband round, white, front ring green, mounting Ø 22.3 mm, 1.30.270.901/2205
Unit Price (€ / pc.)
6.4141 € *
Next delivery: 8 pcs. on 2025-10-10
Ultra-flat control elements, series RAFIX 22FS+, type RAFI 1.20.
Mounting depth: 9.2 mm. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: –25 to +70 °C. PCB connection with anti-twist mechanism. Pushbutton travel: 4.0 mm. End stop strength: 100 N. NC contacts: force released to IEC 947-5-1. Switching element: gold contacts. Illumination: 3.0 mm LED.
Pushbutton, illuminated, plastic front ring, series RAFIX 22FS+ FLEXILAB.
Momentary action contacts, round collar.
Technical attributes (type, front ring color): 1.30.270.901/2205, green
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Protection class | IP65 | |
| Installation depth | 9.2 mm | |
| Contact function | groping | |
| Installation height | 9.85 mm | |
| Installation diameter | 22.3 mm | |
| Type of mounting | threaded ring | |
| Collar shape of the front frame | round | |
| Actuator colour | white | |
| Front ring colour | green | |
| can be illuminated | Yes | |
| Product type | pushbutton |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | HU |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
