1.30.270.901/2204 | RAFI

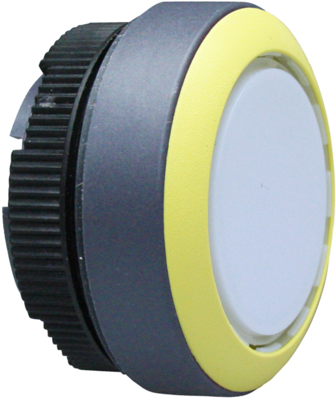

Pushbutton, illuminable, groping, waistband round, white, front ring yellow, mounting Ø 22.3 mm, 1.30.270.901/2204

Order No.: 12G9702
EAN: 4099889251746
MPN:
1.30.270.901/2204
Series: RAFIX 22 FS+
1.30.270.901/2204 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
6.4141 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
6.41 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.4141 €

Ultra-flat control elements, series RAFIX 22FS+, type RAFI 1.20.

Mounting depth: 9.2 mm. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: –25 to +70 °C. PCB connection with anti-twist mechanism. Pushbutton travel: 4.0 mm. End stop strength: 100 N. NC contacts: force released to IEC 947-5-1. Switching element: gold contacts. Illumination: 3.0 mm LED.

Pushbutton, illuminated, plastic front ring, series RAFIX 22FS+ FLEXILAB.

Momentary action contacts, round collar.

Technical attributes (type, front ring color): 1.30.270.901/2204, yellow

Technical specifications
Filter Property Value
Installation diameter 22.3 mm
Type of mounting threaded ring
Installation height 9.85 mm
Front ring colour yellow
Protection class IP65
Installation depth 9.2 mm
Contact function groping
Actuator colour white
Product type pushbutton
can be illuminated Yes
Collar shape of the front frame round
Logistics
Property Value
Country of origin HU
Original Packaging Carton with 10 pieces
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
