1.30.270.901/2203 | RAFI

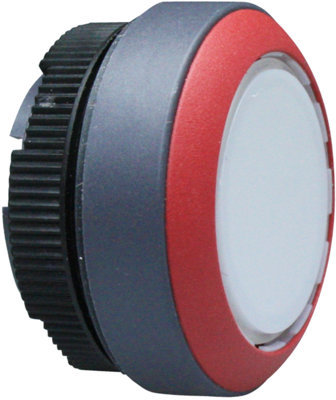

Pushbutton, illuminable, groping, waistband round, white, front ring red, mounting Ø 22.3 mm, 1.30.270.901/2203

Order No.: 12G9701
EAN: 4099889251739
MPN:
1.30.270.901/2203
Series: RAFIX 22 FS+
1.30.270.901/2203 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
6.4141 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
6.41 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.4141 €

Ultra-flat control elements, series RAFIX 22FS+, type RAFI 1.20.

Mounting depth: 9.2 mm. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: –25 to +70 °C. PCB connection with anti-twist mechanism. Pushbutton travel: 4.0 mm. End stop strength: 100 N. NC contacts: force released to IEC 947-5-1. Switching element: gold contacts. Illumination: 3.0 mm LED.

Pushbutton, illuminated, plastic front ring, series RAFIX 22FS+ FLEXILAB.

Momentary action contacts, round collar.

Technical attributes (type, front ring color): 1.30.270.901/2203, red

Technical specifications
Installation height 9.85 mm
Contact function groping
Installation diameter 22.3 mm
Type of mounting threaded ring
Front ring colour red
Actuator colour white
Product type pushbutton
Protection class IP65
Installation depth 9.2 mm
Collar shape of the front frame round
can be illuminated Yes
Logistics
Country of origin HU
Customs tariff number 85365080
Original Packaging Carton with 10 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
