1.30.270.271/2300 | RAFI

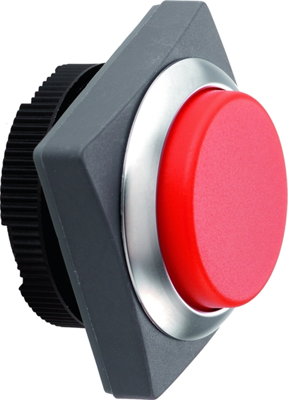

Pushbutton, illuminable, groping, waistband square, red, front ring silver, mounting Ø 22.3 mm, 1.30.270.271/2300

Order No.: 12G9263
EAN: 4099889250589
MPN:
1.30.270.271/2300
Series: RAFIX 22 FS+
1.30.270.271/2300 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
8.33 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
8.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
8.33 €

Pushbutton series RAFIX 22FS+

Type: 1.30.270.271/2300

Version: illuminated

Color: red translucent

Function: momentary

Actuator: colored, translucent

Actuator raised above front ring, with direct action to the contact block. Metallic bezel. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: - 25 to +70 °C. Pushbutton travel: 4.0 mm.

Technical specifications
Filter Property Value
Protection class IP65
Installation depth 9.2 mm
Contact function groping
Installation height 12.9 mm
Installation diameter 22.3 mm
Type of mounting threaded ring
Collar shape of the front frame square
Actuator colour red
Front ring colour silver
can be illuminated Yes
Product type pushbutton
Logistics
Property Value
Customs tariff number 85365080
Country of origin HU
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
