1.30.270.221/2300 | RAFI
Pushbutton, illuminable, groping, waistband round, red, front ring silver, mounting Ø 22.3 mm, 1.30.270.221/2300
Unit Price (€ / pc.)
10.7219 € *
Available: 16 pcs.
Total Price:
10.72 € *
Price list
Quantity
Price per unit*
1 pcs.
10.7219 €
10 pcs.
9.4367 €
50 pcs.
8.8060 €
150 pcs.
8.4014 €
500 pcs.
7.9849 €
*incl. VAT plus shipping costs
Subject to prior sale
Pushbutton series RAFIX 22FS+
Type: 1.30.270.221/2300
Version: illuminated
Color: red
Function: momentary
Actuator: colored, translucent
Actuator raised above front ring, with direct action to the contact block. Metallic bezel. Mounting: threaded ring. Panel cut-out: 22.3 mm. Degree of protection: IP 65. Operating temperatures: - 25 to +70 °C. Pushbutton travel: 4.0 mm.

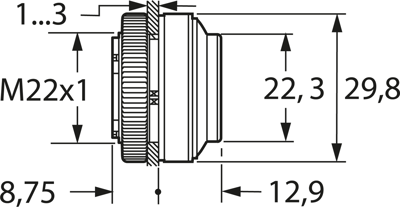

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Protection class | IP65 | |
| Installation depth | 9.2 mm | |
| Contact function | groping | |
| Installation height | 12.9 mm | |
| Installation diameter | 22.3 mm | |
| Type of mounting | threaded ring | |
| Collar shape of the front frame | round | |
| Actuator colour | red | |
| Front ring colour | silver | |
| can be illuminated | Yes | |
| Product type | pushbutton |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
