1.30.246.502/0100 | RAFI

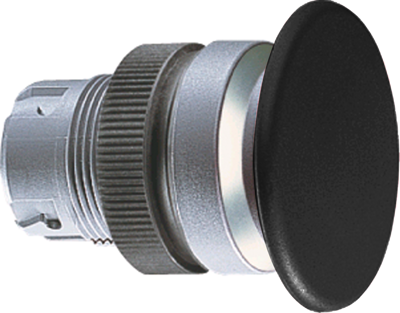

Mushroom pushbutton, unlit, groping, waistband round, black, front ring silver, mounting Ø 22.3 mm, 1.30.246.502/0100

Order No.: 12G8410
EAN: 4099889250039
MPN:
1.30.246.502/0100
Series: RAFIX 22 QR
1.30.246.502/0100 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
12.3284 € *
Available: 4 pcs.
Total Price:
12.33 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3284 €
10 pcs.
10.8528 €
50 pcs.
10.1150 €
150 pcs.
9.6747 €
500 pcs.
9.1630 €
*incl. VAT plus shipping costs
Subject to prior sale

Mushroom head pushbutton switch with metal front ring, series RAFIX 22QR

type: 1.30.246.502/0100

With round collar; contact action: momentary. With metalized front ring, actuator color: black.

suitable for panel-mount diameter of 22.3 mm to IEC 60947. Suitable for the contact blocks . You can combine these as required by snapping them together. Degree of protection at the switchboard front: IP 65. Operating temperatures: - 25 to +70 °C. Mounting position: any. Screw terminals. Safety class: II. Contact system: self-cleaning bridge contact. Actuating force: 5.0 N per element. Operating current with silver-plated contacts: 250 V/6.0 A (125 V/10 A, 400 V/13.5 A). Operating current with gold-plated contacts: 1.0 to 35 V AC/DC/0.01 to 100 mA UC. Rated insulation voltage: 400 VAC. Rated surge voltage: 6.0 kV. Force released NC contact to IEC 94-5-1.

Technical specifications
Filter Property Value
Collar shape of the front frame round
Type of mounting threaded ring
Contact function groping
Product type mushroom pushbutton
Actuator colour black
Front ring colour silver
Installation diameter 22.3 mm
can be illuminated No
Installation height 20.1 mm
Installation depth 56.4 mm
Protection class IP65
Logistics
Property Value
Customs tariff number 85365080
Country of origin HU
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
