1.30.245.202/0000 | RAFI

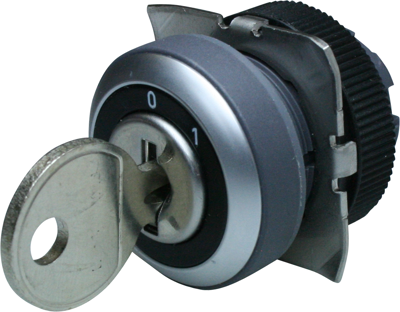

Key switch, unlit, latching, waistband round, black, front ring silver, 90°, trigger position 0, mounting Ø 22.3 mm, 1.30.245.202/0000

Order No.: 12G8320
EAN: 4099889249996
MPN:
1.30.245.202/0000
Series: RAFIX 22 QR
1.30.245.202/0000 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
37.7944 € *
Available: 2 pcs.
Total Price:
37.79 € *
Price list
Quantity
Price per unit*
1 pcs.
37.7944 €
5 pcs.
35.5334 €
15 pcs.
34.1530 €
50 pcs.
32.6536 €
150 pcs.
31.2970 €
*incl. VAT plus shipping costs
Subject to prior sale

Keylock switches with metalized front ring, series RAFIX 22QR,

type: 1.30.245.202/0000

Collar: round. Front ring: metal-colored. Master/group key: no. Master and turning key: no. Lock: 455/Ronis. Interlocks: 4. With metalized front ring. With latching action 1 x 90°. Rem: 0. Supplied with threaded ring with claw and 2 keys.

suitable for panel-mount diameter of 22.3 mm to IEC 60947. Suitable for the contact blocks. You can combine these as required by snapping them together. Degree of protection at the switchboard front: IP 65. Operating temperatures: - 25 to +70 °C. Mounting position: any. Screw terminals. Safety class: II. Contact system: self-cleaning bridge contact. Actuating force: 5.0 N per element. Operating current with silver-plated contacts: 250 V/6.0 A (125 V/10 A, 400 V/13.5 A). Operating current with gold-plated contacts: 1.0 to 35 V AC/DC/0.01 to 100 mA UC. Rated insulation voltage: 400 VAC. Rated surge voltage: 6.0 kV. Force released NC contact to IEC 94-5-1.

Technical specifications
Filter Property Value
Collar shape of the front frame round
Rotation angle 90°
Type of mounting threaded ring
Contact function latching
Product type key switch
Actuator colour black
Front ring colour silver
Installation diameter 22.3 mm
can be illuminated No
Installation height 30.6 mm
Trigger position key 0
Installation depth 56.4 mm
Protection class IP65
Logistics
Property Value
Customs tariff number 85365080
Country of origin HU
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
