1.30.245.002/0000 | RAFI

Key switch, unlit, groping, waistband round, black, front ring silver, 40°, trigger position 0, mounting Ø 22.3 mm, 1.30.245.002/0000

Order No.: 12G8300
EAN: 4099889249972
MPN:
1.30.245.002/0000
Series: RAFIX 22 QR
1.30.245.002/0000 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
30.8091 € *
Next delivery: 10 pcs. on 2025-07-04
Total Price:
30.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
30.8091 €

Keylock switch with metalized front ring, series RAFIX 22QR

type: 1.30.245.002/0000

Collar: round. Front ring: metal-colored. Master/group key: no. Master and turning key: no. Lock: 455/Ronis. Interlocks: 4. With momentary action, 1 x 40°. Rem 0., with metalized front ring. Supplied with threaded ring with claw and 2 keys.

suitable for panel-mount diameter of 22.3 mm to IEC 60947. Suitable for the contact blocks. You can combine these as required by snapping them together. Degree of protection at the switchboard front: IP 65. Operating temperatures: - 25 to +70 °C. Mounting position: any. Screw terminals. Safety class: II. Contact system: self-cleaning bridge contact. Actuating force: 5.0 N per element. Operating current with silver-plated contacts: 250 V/6.0 A (125 V/10 A, 400 V/13.5 A). Operating current with gold-plated contacts: 1.0 to 35 V AC/DC/0.01 to 100 mA UC. Rated insulation voltage: 400 VAC. Rated surge voltage: 6.0 kV. Force released NC contact to IEC 94-5-1.

Technical specifications
Filter Property Value
Protection class IP65
Type of mounting threaded ring
Actuator colour black
Product type key switch
Rotation angle 40°
Collar shape of the front frame round

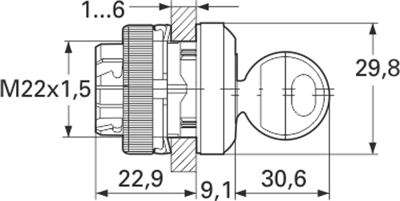

Installation height 30.6 mm
can be illuminated No
Trigger position key 0
Installation depth 56.4 mm
Contact function groping
Front ring colour silver
Installation diameter 22.3 mm
Logistics
Property Value
Country of origin HU
Customs tariff number 85365080
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
