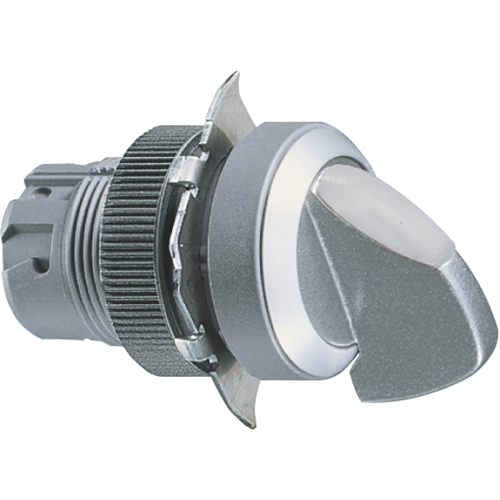

Toggle switch, illuminable, latching, waistband round, white, front ring silver, 2 x 60°, mounting Ø 22.3 mm, 1.30.242.312/2200
Mode switches with marked toggle and metalized front ring, series RAFIX 22QR
type: 1.30.242.312/2200
Collar: round. Rotary toggle: long. Toggle marking: white, translucent illuminated, with metalized front ring, with latching function, 2 x 60°. Supplied with threaded ring and claw.
suitable for panel-mount diameter of 22.3 mm to IEC 60947. Suitable for the contact blocks and lamp sockets. You can combine these as required by snapping them together. Degree of protection at the switchboard front: IP 65. Operating temperatures: - 25 to +70 °C. Mounting position: any. Screw terminals. Safety class: II. Contact system: self-cleaning bridge contact. Actuating force: 5.0 N per element. Operating current with silver-plated contacts: 250 V/6.0 A (125 V/10 A, 400 V/13.5 A). Operating current with gold-plated contacts: 1.0 to 35 V AC/DC/0.01 to 100 mA UC. Rated insulation voltage: 400 VAC. Rated surge voltage: 6.0 kV. Force released NC contact to IEC 94-5-1.
Note: versions with 2 latching positions can only be equipped with two contact blocks, i.e., on the left/right side; a third contact block in the center is not permitted.
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 22.3 mm | |
| Protection class | IP65 | |
| Rotation angle | 2 x 60° | |
| can be illuminated | Yes | |
| Installation height | 22.2 mm | |
| Contact function | latching | |
| Collar shape of the front frame | round | |
| Actuator colour | white | |
| Type of mounting | threaded ring | |
| Product type | toggle switch | |
| Front ring colour | silver | |
| Installation depth | 56.4 mm |
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85365080 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
