1.30.076.171/0000 | RAFI

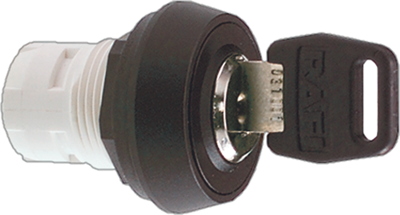

Key switch, unlit, latching, waistband round, black, 90°, trigger position 0 + 1, mounting Ø 16.2 mm, 1.30.076.171/0000

Order No.: 12G6494
EAN: 4099889247541
MPN:
1.30.076.171/0000
Series: RAFIX 16
1.30.076.171/0000 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
24.9900 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
24.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
24.9900 €

Keylock switches MICROMEC with round collar series RAFIX 16

type: 1.30.076.171/0000

Contact action: momentary or latching, design 2: slightly chamfered front ring. Locking position: 001. Supplied with 2 keys. Note: Always use momentary action contact blocks, for types with left/right turn functionality you should only use the universal contact block.

Table index: rotary angle, momentary action switch positions (left, center, right), key removal position (rem), contact Action.

functions: V 1 x 90°, left/right, rem 0+1, latching

Technical specifications
Filter Property Value
Installation diameter 16.2 mm
Type of mounting threaded ring
Installation height 27.95 mm
Protection class IP65
Installation depth 44.7 mm
Contact function latching
Actuator colour black
Product type key switch
can be illuminated No
Trigger position key 0 + 1
Collar shape of the front frame round
Rotation angle 90°
Logistics
Property Value
Country of origin HU
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
