1.11.099.002/0010 | RAFI

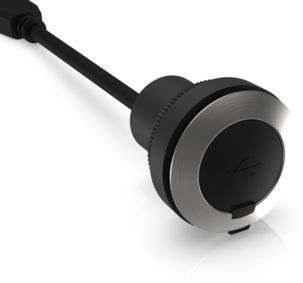

Cable gland, USB 3.0, unlit, waistband round, black, front ring stainless steel, mounting Ø 30.3 mm, 1.11.099.002/0010

Order No.: 12G9669
EAN: 4099889251708
MPN:
1.11.099.002/0010
Series: RAMO 30
1.11.099.002/0010 RAFI Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
61.7134 € *
Available: 1 pcs.
Total Price:
61.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
61.7134 €

Cable feed-through, 1.11.099.002/0010, RAFI

Cable feed-through for front panels. Front side USB 3.0 or RJ45, rear side with corresponding sockets in the housing or 55 cm cable and socket

Technical Data

  • Type of mounting: Threaded ring
  • Collar shape: round
  • Installation diameter: 30.3 mm
  • Installation depth: 30.8 mm
  • Installation height: 5.2 mm
Technical specifications
Installation height 5.2 mm
Installation diameter 30.3 mm
Type of mounting threaded ring
Front ring colour stainless steel
Actuator colour black
Product type cable gland
Version USB 3.0
Connection USB plug type A
Protection class IP65
Installation depth 30.8 mm
Collar shape of the front frame round
can be illuminated No
Logistics
Country of origin HU
Customs tariff number 85365011
Original Packaging Carton with 2 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
