1.11.011.801/0400 | RAFI

Pushbutton, illuminable, groping, 1 Form A (N/O), waistband round, stainless steel, front ring stainless steel, mounting Ø 30.3 mm, 1.11.011.801/0400

Order No.: 12G9639
EAN: 4099889251425
MPN:
1.11.011.801/0400
Series: RAMO 30

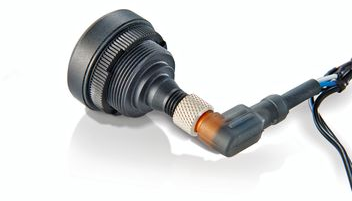

1.11.011.801/0400 RAFI Actuators, Signal Elements and Front Elements Image 1
1.11.011.801/0400 RAFI Actuators, Signal Elements and Front Elements Image 2
Image may differ
Unit Price (€ / pc.)
52.3838 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
52.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
52.3838 €

Pushbutton, 1.11.011.801/0400, RAFI

By using the RAFI MICON 5 short-travel keyswitch, RAMO 30T T offers tactile feedback with a clear key click. Due to its protection class IP 66/IP69K, it is particularly recommended for plant engineering. RAMO 30 T require a mounting diameter of 30.3 mm. Contact function: 1 NO contact, actuating function: momentary, cover and front ring made of stainless steel, shape of collar: round, connection type: M12, colour of ring illumination: yellow.

Technical specifications
Filter Property Value
Installation diameter 30.3 mm
Type of mounting threaded ring
Latching switching function 1 Form A (N/O)
Installation height 3.8 mm
Connection M12 plug, 4 pole
Front ring colour stainless steel
Protection class IP66/IP67/IP69K
Installation depth 36.4 mm
Contact function groping
Actuator colour stainless steel
Product type pushbutton
Contact material gold
can be illuminated Yes
Collar shape of the front frame round
Logistics
Property Value
Country of origin HU
Original Packaging Carton with 10 pieces
Customs tariff number 85365011
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
