1.10.051.604/0001 | RAFI

Key switch, unlit, latching, 1 Form B (N/C) + 1 Form A (N/O), waistband round, black, front ring black, 90°, trigger position 0 + 1, mounting Ø 22.3 mm, 1.10.051.604/0001

Order No.: 12G9634
EAN: 4099889251371
MPN:
1.10.051.604/0001
Series: RAMO 22

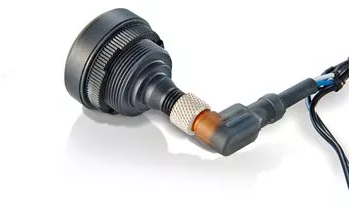

1.10.051.604/0001 RAFI Actuators, Signal Elements and Front Elements Image 1
1.10.051.604/0001 RAFI Actuators, Signal Elements and Front Elements Image 2
Image may differ
Unit Price (€ / pc.)
80.8129 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
80.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
80.8129 €

Key switch, 1.10.051.604/0001, RAFI

Keylock switch with various switching positions and M12 terminal

FEATURES

  • Precise haptics
  • Safe gold contacts
  • Simple M12 plug connection
  • Protected contacts due to sealed housing

Technical Data

  • Type of mounting: Threaded ring
  • Collar shape: round
  • Installation diameter: 22.3 mm
  • Installation depth: 30 mm
  • Installation height: 45 mm
  • Switching current, max.: 100 mA
  • Switching voltage, max: 32 V
Technical specifications
Filter Property Value
Collar shape of the front frame round
Rotation angle 90°
Installation depth 30 mm
Connection M12 plug, 4 pole
can be illuminated No
Contact material gold
Front ring colour black
Trigger position key 0 + 1
Latching switching function 1 Form B (N/C) + 1 Form A (N/O)
Product type key switch
Installation height 45 mm
Protection class IP65
Actuator colour black
Contact function latching
Type of mounting threaded ring
Installation diameter 22.3 mm
Logistics
Property Value
Original Packaging Carton with 2 pieces
Country of origin DE
Customs tariff number 85365080
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
