1.10.051.603/0001 | RAFI

Key switch, unlit, latching, 1 Form B (N/C) + 1 Form A (N/O), waistband round, black, front ring black, 90°, trigger position 0 + 1, mounting Ø 22.3 mm, 1.10.051.603/0001

Order No.: 12G9633
EAN: 4099889251364
MPN:
1.10.051.603/0001
Series: RAMO 22

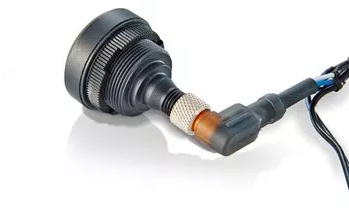

1.10.051.603/0001 RAFI Actuators, Signal Elements and Front Elements Image 1
1.10.051.603/0001 RAFI Actuators, Signal Elements and Front Elements Image 2
Image may differ
Unit Price (€ / pc.)
80.8129 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
80.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
80.8129 €

Key switch, 1.10.051.603/0001, RAFI

Keylock switch with various switching positions and M12 terminal

FEATURES

  • Precise haptics
  • Safe gold contacts
  • Simple M12 plug connection
  • Protected contacts due to sealed housing

Technical Data

  • Type of mounting: Threaded ring
  • Collar shape: round
  • Installation diameter: 22.3 mm
  • Installation depth: 30 mm
  • Installation height: 45 mm
  • Switching current, max.: 100 mA
  • Switching voltage, max: 32 V
Technical specifications
Filter Property Value
Contact material gold
Installation height 45 mm
can be illuminated No
Rotation angle 90°
Trigger position key 0 + 1
Protection class IP65
Installation diameter 22.3 mm
Front ring colour black
Latching switching function 1 Form B (N/C) + 1 Form A (N/O)
Connection M12 plug, 4 pole
Actuator colour black
Product type key switch
Collar shape of the front frame round
Type of mounting threaded ring
Contact function latching
Installation depth 30 mm
Logistics
Property Value
Customs tariff number 85365080
Country of origin DE
Original Packaging Carton with 2 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
