931-EP | Rademacher
Circuit board, 100 x 160 mm, pitch 2.54 mm, single sided, FR2 hard paper, Cu 35 µm, 931-EP
Order No.: 10H7814
EAN: 4099889462517
MPN:
931-EP
Experim.karte Ep. 100 x 160 mm
Unit Price (€ / pc.)
6.7473 € *
Available: 22 pcs.
Leadtime: On Request **
Total Price:
6.75 € *
Price list
Quantity
Price per unit*
1 pcs.
6.7473 €
25 pcs.
6.1523 €
50 pcs.
5.5811 €
100 pcs.
5.1289 €
500 pcs.
4.6886 €
*incl. VAT plus shipping costs
**Subject to prior sale

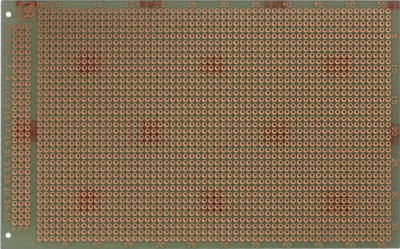

Printed circuit board, 931-EP, Rademacher
Single-sided, universal prototype board that can be used for laboratory applications and for training and test applications for IHK examinations (electronic technicians, communications, information technology), with optional socket strip connection and mounting holes for 32-, 64- and 96-pole male connectors to DIN 41612; Format: 100 x 160 mm. Substrate: laminated paper or epoxy resin. Grid: 2.54 mm. Hole rows: 37. Holes: 1.0 mm. Copper plating: 35 µm. Board thickness: 1.5 mm.
Technical attributes (type, format, substrate): 931 EP, 100 x 160 mm, epoxy resin.
Technical specifications
| copper strength | 35 m | |
| Hole diameter | 1 mm | |
| Grid | 2.54 mm | |
| Width | 160 mm | |
| Height | 1.5 mm | |
| Length | 100 mm | |
| One / two-sided | single sided | |
| Version | circuit board | |
| Material | FR2 hard paper | |
| Throughplated | No |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85340011 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
