711-5 | Rademacher

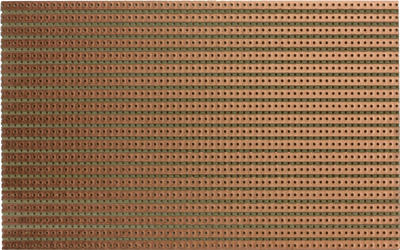

Perforated strip board, 160 x 100 mm, pitch 5.08 mm, single sided, FR2 hard paper, Cu 35 µm, 711-5
Order No.: 10H7765
EAN: 4099889462388
MPN:
711-5
Lötstreifenrasterpl. 160x100mm
Unit Price (€ / pc.)
2.4633 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.46 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4633 €
25 pcs.
2.2491 €
50 pcs.
2.0349 €
100 pcs.
1.8802 €
500 pcs.
1.7017 €
*incl. VAT plus shipping costs
Subject to prior sale
Printed circuit board, 711-5, Rademacher
Single-sided, laminated paper with 35-µm copper plating; Format: 100 x 160 mm. Grid: 5.08 mm. PCB traces: 20, holes: 1.0 mm in and between the PCB traces, PCB thickness: 1.5 mm.
Type: 711-5, PCB
Technical specifications
| Filter | Property | Value |
|---|---|---|
| One / two-sided | single sided | |
| Throughplated | No | |
| Width | 100 mm | |
| copper strength | 35 m | |
| Material | FR2 hard paper | |
| Version | perforated strip board | |
| Hole diameter | 1 mm | |
| Length | 160 mm | |
| Grid | 5.08 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85340011 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
