4 S 60 | QUICK-OHM
Round / hexagonal spacer bolt, external/internal thread, M4/M4, 60 mm, PS, 4 S 60
Order No.: 18H3876
EAN: 4099889493955
MPN:
4 S 60
Unit Price (€ / pc.)
1.6303 € *
Available: 638 pcs.
Leadtime: 4 Weeks **
Total Price:
1.63 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6303 €
10 pcs.
1.4875 €
100 pcs.
1.3685 €
500 pcs.
1.2614 €
1000 pcs.
1.1543 €
*incl. VAT plus shipping costs
**Subject to prior sale

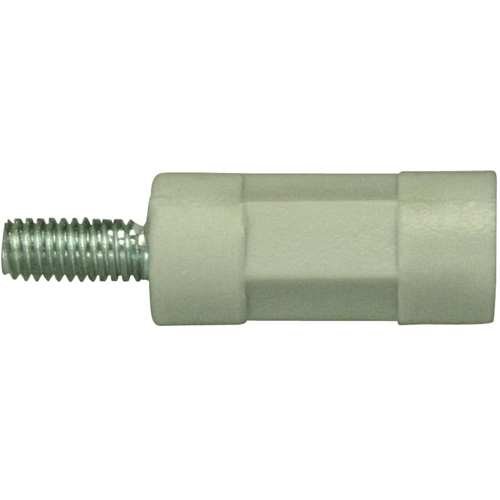

Plastic spacer bolts, type Quick-Ohm 3S../4S.

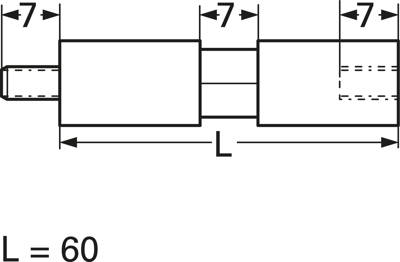

Round, with 7.0 mm hexagon head in the center and insulated threads, one end threaded pin, opposing end threaded bushing
Spacer bolts, M 4 thread (W 9 mm), type S4.
Technical specifications
| Version | Außen-/Innengewinde | |
| Outer diameter | 4 mm | |
| External thread length | 7 mm | |
| Design | Rund-/Sechskant | |
| Bolt length | 60 mm | |
| Thread size | M4/M4 | |
| Inner diameter | 4 mm | |
| Internal thread length | 7 mm | |
| Length | 67 mm | |
| Material | PS | |
| spanner size | 9 mm |
Download
Logistics
| Country of origin | NL |
| Customs tariff number | 73181535 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
