4 S 55 | QUICK-OHM
Round/hexagonal spacer bolt, external/internal thread, M4/M4, 55 mm, PS, 4 S 55
Order No.: 18H3874
EAN: 4099889493948
MPN:
4 S 55
Unit Price (€ / pc.)
1.2376 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
618.80 € *
Price list
Quantity
Price per unit*
500 pcs.
1.2376 €
1000 pcs.
1.1305 €
*incl. VAT plus shipping costs
Subject to prior sale

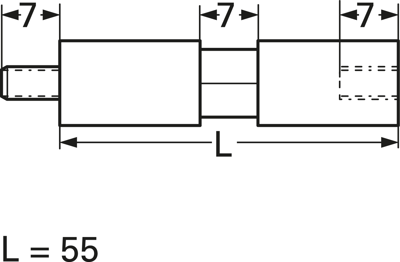

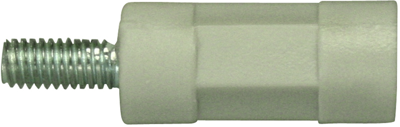

Plastic spacer bolts, type Quick-Ohm 3S../4S.
Round, with 7.0 mm hexagon head in the center and insulated threads, one end threaded pin, opposing end threaded bushing
Spacer bolts, M 4 thread (W 9 mm), type S4.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 9 mm | |
| Bolt length | 55 mm | |
| Internal thread length | 7 mm | |
| External thread length | 7 mm | |
| Thread size | M4/M4 | |
| Length | 62 mm | |
| Material | PS | |
| Inner diameter | 4 mm | |
| Design | round/hexagonal | |
| Outer diameter | 4 mm | |
| Product type | spacer bolt | |
| Version | external/internal thread |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | NL |
| Customs tariff number | 73181535 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
