4 S 25 | QUICK-OHM
Round/hexagonal spacer bolt, external/internal thread, M4/M4, 25 mm, PS, 4 S 25
Order No.: 18H3866
EAN: 4099889493917
MPN:
4 S 25
Unit Price (€ / pc.)
1.5232 € *
Available: 39 pcs.
Total Price:
1.52 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5232 €
10 pcs.
1.3923 €
100 pcs.
1.2852 €
500 pcs.
1.1781 €
1000 pcs.
1.0710 €
*incl. VAT plus shipping costs
Subject to prior sale

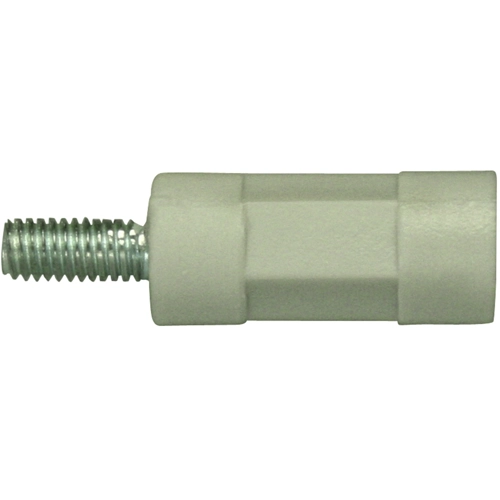

Plastic spacer bolts, type Quick-Ohm 3S../4S.

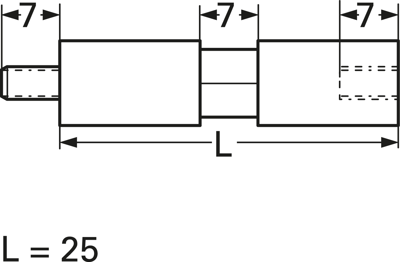

Round, with 7.0 mm hexagon head in the center and insulated threads, one end threaded pin, opposing end threaded bushing
Spacer bolts, M 4 thread (W 9 mm), type S4.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Internal thread length | 7 mm | |
| spanner size | 9 mm | |
| External thread length | 7 mm | |
| Length | 32 mm | |
| Outer diameter | 4 mm | |
| Material | PS | |
| Thread size | M4/M4 | |
| Design | round/hexagonal | |
| Inner diameter | 4 mm | |
| Product type | spacer bolt | |
| Version | external/internal thread | |
| Bolt length | 25 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73181535 |
| Country of origin | NL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
