2111O162 | QUADRIOS

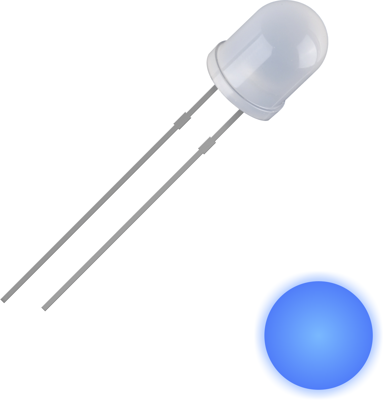

LED, THT, Ø 3 mm, blue, 460 nm, 1300 mcd, 30°, 2111O162
Order No.: 67S4372
EAN: 4260732280088
MPN:
2111O162
Unit Price (€ / pc.)
0.0381 € *
Available: 980 pcs.
Total Price:
0.04 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0381 €
10 pcs.
0.0369 €
100 pcs.
0.0333 €
500 pcs.
0.0298 €
*incl. VAT plus shipping costs
Subject to prior sale
LED, 2111O162, QUADRIOS
This round LED is perfect for standard applications with semiconductor light. LED always need to be driven with current-limitation (pre-resistor or constant-current-source) to avoid any damages of the component. Anode = positive / Cathode = negative voltage. LED is not shock-sensitive and has a low power consumption.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -25 °C | |
| max. operating temperature | 80 °C | |
| Assembly | THT | |
| On-State Voltage | 3 V | |
| Number of LEDs | 1 | |
| Lens | white | |
| Colour of the LED | blue | |
| Radiation angle | 30 ° | |
| diameter | 3 mm | |
| Forward Current | 20 mA | |
| Wavelength | 460 nm | |
| Light intensity typ. | 1.3 cd | |
| Length | 5.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | CN |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
