2111O151 | QUADRIOS

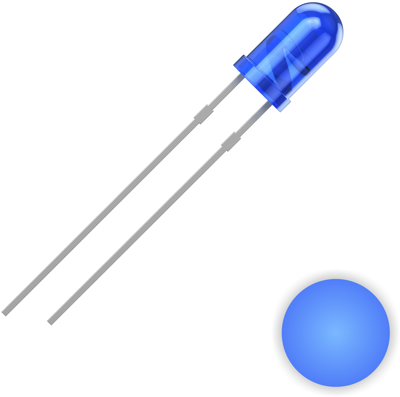

LED, THT, Ø 3 mm, blue, 460 nm, 1300 mcd, 30°, 2111O151
Order No.: 67S4361
EAN: 4260573969975
MPN:
2111O151
Unit Price (€ / pc.)
0.032 € *
Available: 247 pcs.
Total Price:
0.03 € *
Price list
Quantity
Price per unit*
1 pcs.
0.032 €
10 pcs.
0.031 €
100 pcs.
0.028 €
500 pcs.
0.025 €
*plus VAT and shipping costs
Subject to prior sale
LED, 2111O151, QUADRIOS
This round LED is perfect for standard applications with semiconductor light. LED always need to be driven with current-limitation (pre-resistor or constant-current-source) to avoid any damages of the component. Anode = positive / Cathode = negative voltage. LED is not shock-sensitive and has a low power consumption.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of LEDs | 1 | |
| Wavelength | 460 nm | |
| Length | 5.1 mm | |
| max. operating temperature | 80 °C | |
| diameter | 3 mm | |
| Assembly | THT | |
| Lens | blue | |
| Light intensity typ. | 1.3 cd | |
| Forward Current | 20 mA | |
| Radiation angle | 30 ° | |
| min. operating temperature | -25 °C | |
| Colour of the LED | blue | |
| On-State Voltage | 3 V |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 1,000 pieces |
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
