23C495 | QUADRIOS

Butt connector assortment, heat shrink insulation, 0.3 mm² to 4.0 mm², 50 pieces, 23C495

Order No.: 30F156
EAN: 4260732283294
MPN:
23C495

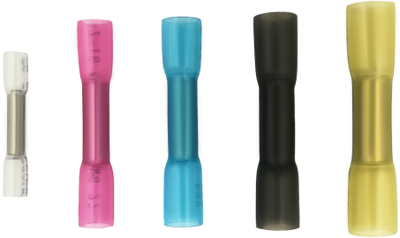

23C495 QUADRIOS Connector Assortments Image 1

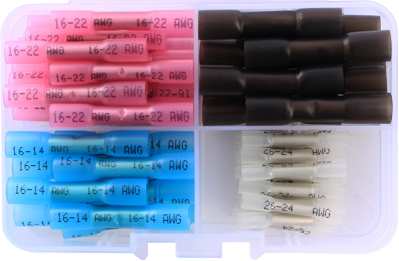

23C495 QUADRIOS Connector Assortments Image 2
Image may differ
Unit Price (€ / pc.)
9.0202 € *
Available: 19 pcs.
Total Price:
9.02 € *
Price list
Quantity
Price per unit*
1 pcs.
9.0202 €
10 pcs.
8.2705 €
25 pcs.
7.4375 €
*incl. VAT plus shipping costs
Subject to prior sale

Butt connector kit with heat shrink insulation, 23C495, QUADRIOS

Heat shrink butt crimp connectors with glue, glue melts during shrink-process. Shrink ratio: 3:1, temperature range: -55 to +125 °C.

Scope of delivery:

  • 20 pcs, white, 0.3-0.5 mm², AWG 26-24, 9 A, Ø 4 mm
  • 10 pcs, red, 0.5-1.5 mm², AWG 22-16, 19 A, Ø 4.7 mm
  • 10 pcs, blue, 1.5-2.5 mm², AWG 16-14, 27 A, Ø 5.7 mm
  • 10 pcs, black, 2.5-4 mm², AWG 14-12, 35 A, Ø 6 mm
Technical specifications
Filter Property Value
Product type butt connector assortment
Version heat shrink insulation, 0.3 mm² to 4.0 mm²
Delivery incl. Tools No
Number of single parts 50
Logistics
Property Value
Country of origin CN
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
