201711C001 | QUADRIOS

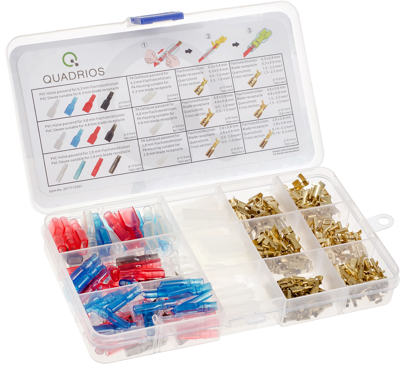

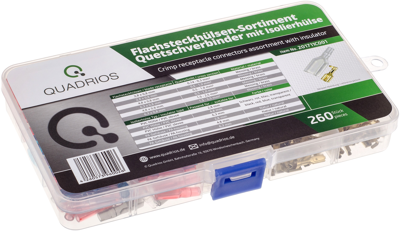

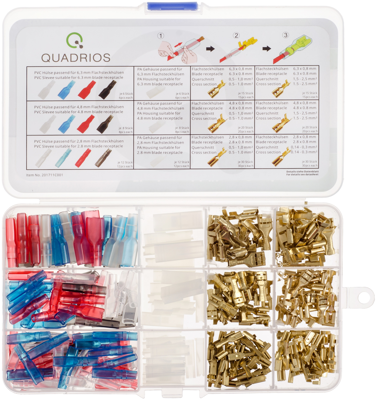

Flat receptacles assortment, 260 pieces, 201711C001
Order No.: 07F2120
EAN: 4260573960026
MPN:
201711C001
Unit Price (€ / pc.)
11.7334 € *
Available: 8 pcs.
Total Price:
11.73 € *
Price list
Quantity
Price per unit*
1 pcs.
11.7334 €
10 pcs.
10.7576 €
*incl. VAT plus shipping costs
Subject to prior sale
Crimp receptacle connectors assortment, 201711C001, QUADRIOS
Household appliances use crimp connectors (tabs) from 2.8 mm to 6.3 mm. This practical range consists of the most common blade receptacles, soft insulating sleeves and hard plastic protecting boots - ideal for repair and maintenance. The compilation includes the cross sections from 0.14 mm² to 2.5 mm² for fine and superfine conductors.

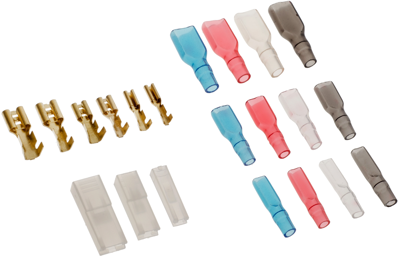

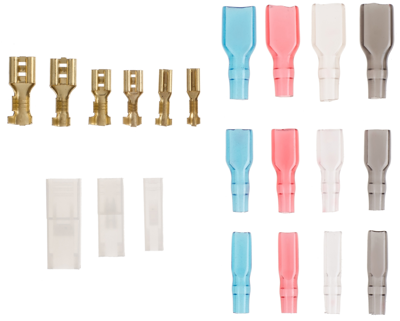

Scope of delivery:
- 30 x flat receptacles 0.14 - 0.3 mm² 2.8 x 0.8 mm
- 30 x flat receptacles 0,5 - 1 mm² 2,8 x 0,8 mm
- 20 x flat receptacles 0,5 - 1 mm² 4,8 x 0,8 mm
- 15 x flat receptacles 0,5 - 1 mm² 6,3 x 0,8 mm
- 20 x flat receptacles 1,5 - 2,5 mm² 4,8 x 0,8 mm
- 15 x flat receptacles 1,5 - 2,5 mm² 6,3 x 0,8 mm
- 12 x insulating sleeve made of soft PVC for flat receptacles 2.8 mm transparent
- 12 x insulating sleeve made of soft PVC for flat receptacles 2.8 mm black
- 12 x insulating sleeve made of soft PVC for flat receptacles 2.8 mm red
- 12 x insulating sleeve made of soft PVC for flat receptacles 2.8 mm blue
- 8 x insulating sleeve made of soft PVC for flat receptacles 4.8 mm transparent
- 8 x insulating sleeve made of soft PVC for flat receptacles 4.8 mm black
- 8 x insulating sleeve made of soft PVC for flat receptacles 4.8 mm red
- 8 x insulating sleeve made of soft PVC for flat receptacles 4.8 mm blue
- 6 x insulating sleeve made of soft PVC for flat receptacles 6.3 mm transparent
- 6 x insulating sleeve made of soft PVC for flat receptacles 6.3 mm black
- 6 x insulating sleeve made of soft PVC for flat receptacles 6.3 mm red
- 6 x insulating sleeve made of soft PVC for flat receptacles 6.3 mm blue
- 12 x insulating grommets made of PA for flat receptacles 2.8 mm transparent
- 8 x insulating grommets made of PA for flat receptacles 4.8 mm transparent
- 6 x insulating grommet made of PA for flat receptacles 6.3 mm transparent
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | flat receptacles assortment | |
| Delivery incl. Tools | No | |
| Number of single parts | 260 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
