PE-52627NL | Pulse Electronics GmbH

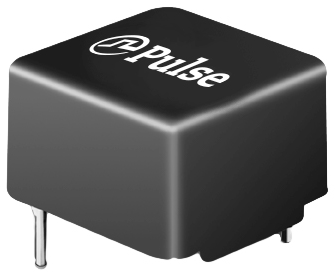

Power choke, THT, 330 µH, 1 A, PE-52627NL
Unit Price (€ / pc.)
2.8679 € *
Standard delivery time from the manufacturer is: On Request
Power inductor, PE-52627NL, PULSE
The PE-52627NL is a power inductor. It is used for energy storage devices, in switched-mode power devices to produce DC current.
Features
- Low profile
- Compact
- High inductance stability with varying volt-seconds and load currents
Applications
- Designed for general purpose use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 1 A | |
| Tolerance | ±20 % | |
| Design | THT | |
| Width | 18.03 mm | |
| Height | 11.68 mm | |
| Inductance | 330 µH | |
| Version | power choke | |
| Length | 18.03 mm | |
| DC resistance | 780 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | CN |
| Original Packaging | Tray with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
