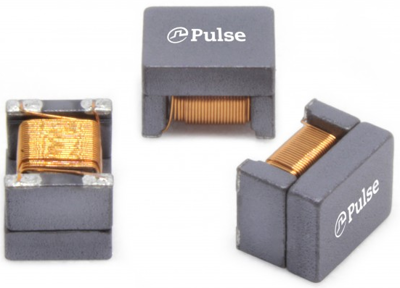

Common mode choke, SMD 1812, 100 µH, 200 mA, PE-1812ACC101STS

default S
default L
Total price
(0.74 € * / pcs.)
3.69 €
Available: 5,000 pcs.
Quantity
Price per unit*
5 pcs.
0.74 €
25 pcs.
0.65 €
125 pcs.
0.60 €
500 pcs.
0.55 €
1000 pcs.
0.50 €
*incl. VAT plus shipping costs
Show 3 variants
Description

Product by Pulse Electronics GmbH at Bürklin Elektronik

Common mode choke, PE-1812ACC101STS, PULSE

The PE-1812ACC101STS is an EMI filter, also called an EMI suppression filter. It is an effective protection against the harmful effects of electromagnetic interference. When attached to equipment or circuits, the EMI filter can suppress electromagnetic interference transmitted through conduction.

Features

  • Suppression of common mode noise without attenuating the signal
  • Magnetically shielded versions for lower Rdc and higher current
  • Supports CAN-Bus and A2B
  • IVN high speed differential signal lines (LVDS)
  • Meets AEC-Q200 Requirements
Technical specifications
Version common mode choke
Design SMD 1812
Width 3.2 mm
DC current 0.2 A
DC resistance 2 Ω
Height 3 mm
Inductance 0.1 mH
Length 4.5 mm
Tolerance -30/+50 %
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85045000
Original Packaging Reel with 500 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 12/19/11
SVHC free Yes
Variations
1 item with 3 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Common mode choke, SMD 1812, 11 µH, 360 mA, PE-1812ACC110STS
Order No.:
 85D301
Manufacturer:
 Pulse Electronics GmbH
Manufacturer SKU
 PE-1812ACC110STS
5000 pcs.
0.54 €
0.00 € *
Currently not in stock, we will order for you
SMD 1812
common mode choke
3.2 mm
4.5 mm
-30/+50 %
3 mm
0.011 mH
0.36 A
0.5 Ω
Common mode choke, SMD 1812, 100 µH, 200 mA, PE-1812ACC101STS
Order No.:
 85D303
Manufacturer:
 Pulse Electronics GmbH
Manufacturer SKU
 PE-1812ACC101STS
5 pcs.
0.74 €
25 pcs.
0.65 €
125 pcs.
0.60 €
500 pcs.
0.55 €
1000 pcs.
0.50 €
3.69 € *
Available: 5,000 pcs.
SMD 1812
common mode choke
3.2 mm
4.5 mm
-30/+50 %
3 mm
0.1 mH
0.2 A
2 Ω
Common mode choke, SMD 1812, 51 µH, 230 mA, PE-1812ACC510STS
Order No.:
 85D299
Manufacturer:
 Pulse Electronics GmbH
Manufacturer SKU
 PE-1812ACC510STS
5000 pcs.
0.54 €
0.00 € *
Currently not in stock, we will order for you
SMD 1812
common mode choke
3.2 mm
4.5 mm
-30/+50 %
3 mm
0.051 mH
0.23 A
1 Ω
