PA4332.222NLT | Pulse Electronics GmbH

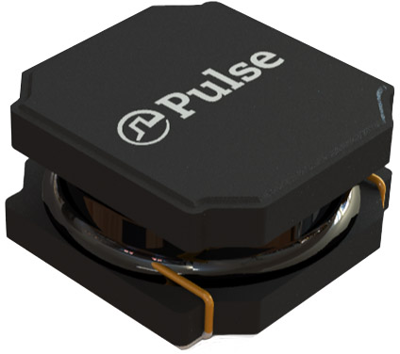

Power choke, SMD, 2.2 µH, 4.3 A, PA4332.222NLT
Order No.: 85D311
EAN: 4099889047776
MPN:
PA4332.222NLT
IND, PWR, 4.0X4.0X2.0 (WPN NPB)
Series: PA43
Unit Price (€ / pc.)
0.4165 € *
Standard delivery time from the manufacturer is: On Request
Power inductor, PA4332.222NLT, PULSE
The PA4332.222NLT is a SMT power inductor. It is used for energy storage devices, in switched-mode power devices to produce DC current.
Features
- Dielectric strength 1500 Vrms
- Current Rating 0.5 Arms to 20 Arms
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 4.3 A | |
| Tolerance | ±20 % | |
| Saturation current | 6.1 A | |
| Design | SMD | |
| Width | 4.2 mm | |
| Height | 2 mm | |
| Inductance | 2.2 µH | |
| Version | power choke | |
| Length | 4.2 mm | |
| DC resistance | 40 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | CN |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
