PE-51687NL | Pulse Electronics GmbH
Current Transformer 1:100 100Ohm Prim. DCR1.4Ohm Sec.
Unit Price (€ / pc.)
2.7251 € *
Standard delivery time from the manufacturer is: On Request

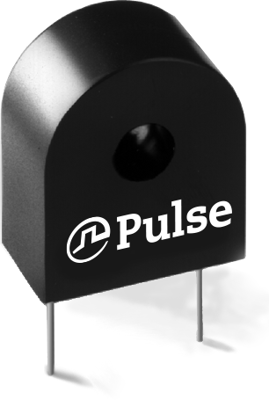

Current transformer, PE-51687NL, Pulse Electronics GmbH
The PE-51687NL Current transformer is designed for switching power supply applications. Transformer meets EN62368-1 insulation requirements.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| Length | 17.01 mm | |
| Height | 20.32 mm | |
| Frequency | 20-200 kHz | |
| Assembly | THT | |
| Width | 9.9 mm | |
| min. operating temperature | -40 °C | |
| Version | current converter | |
| Rated current | 20 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Tray with 60 pieces |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
