FIS115NL | Pulse Electronics GmbH
Current Transformer 1:100 4000Vrms 2Ohm Sec. DCR25A
Unit Price (€ / pc.)
2.0706 € *
Available: 704 pcs.
Total Price:
2.07 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0706 €
30 pcs.
1.7493 €
120 pcs.
1.6184 €
270 pcs.
1.5470 €
*incl. VAT plus shipping costs
Subject to prior sale

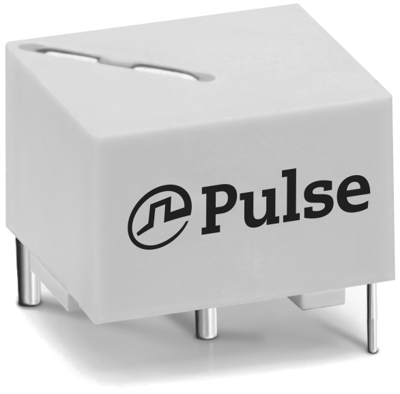

Current transformer, FIS115NL, Pulse Electronics GmbH
Current sense transformer provides output feedback to the pulse control circuitry allowing low-cost regulation of switch-mode power supplies. It features a fully encapsulated construction.
Applications
- Switch-mode power supplies
- Lighting, switch controls
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| Length | 17.6 mm | |
| Height | 12 mm | |
| Frequency | 500 kHz | |
| Assembly | THT | |
| Width | 15.2 mm | |
| min. operating temperature | -40 °C | |
| Weight | 7 g | |
| Version | current converter | |
| Rated current | 25 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Tray with 30 pieces |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
